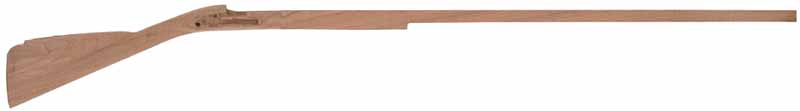

Our fowling gun fullstock is an example of our best workmanship, precision pre-inlet and shaped on Allen’s Patent 5 axis pantograph. Inlet for our round faced L&R Queen Anne right hand flint lock, wide fowler buttplate, curled trigger and plate, and any of several triggerguards. The forend is square ahead of the lock panels, to allow easy drilling of barrel and rod pipe retaining pins. Trigger reach is about 14-1/4”, drop is about 2-3/4”, from the line of sights. The buttplate end is about 2-1/8” wide and 5” high.
Pre-inlet for our 20, or 24 gauge smoothbore, and .54, or .58 caliber rifled tapered octagon-to-round 42” fowler barrel. The barrel inlet is so crisp that the wedding bands are clearly visible in the barrel channel. Make the square cuts behind the plug, for a snap fit. Shaped from the lock panels back. The lock panels are crisp; the forend is squared to allow easy drilling and mounting in a vise. Shaped with cast-off for a right hand shooter. This slim fullstock is drilled full depth to accept a sturdy 3/8" diameter ramrod. Inlet for our round faced L&R Queen Anne right hand flint lock, wide fowler buttplate, curled trigger and plate, and any of several triggerguards.
Specifications for pre-inlet stock:
We are frequently asked:
Can I hand fit a 44” Colerain barrel to this stock? No. Our 42” barrel has a different taper.
Can I hand fit Jim Chambers’ fowling gun lock? No. His big lock hangs over our lock panels. This stock is perfectly scaled for our 20 gauge 42” barrel, with 1” octagon breech. The nice L&R Queen Anne flint lock is the ideal size and shape.
Pre-inlet for our 20, or 24 gauge smoothbore, and .54, or .58 caliber rifled tapered octagon-to-round 42” fowler barrel. The barrel inlet is so crisp that the wedding bands are clearly visible in the barrel channel. Make the square cuts behind the plug, for a snap fit. Shaped from the lock panels back. The lock panels are crisp; the forend is squared to allow easy drilling and mounting in a vise. Shaped with cast-off for a right hand shooter. This slim fullstock is drilled full depth to accept a sturdy 3/8" diameter ramrod. Inlet for our round faced L&R Queen Anne right hand flint lock, wide fowler buttplate, curled trigger and plate, and any of several triggerguards.
Specifications for pre-inlet stock:
- Drop and trigger reach: Drop is 2-3/4" from the line of sights to heel, at 14-1/4" length of pull
- Barrel channel size: #BBL-20-42 octagon-to-round 20 gauge smoothbore, 42" length, will also accept 36" and 30" barrel lengths, or 24 gauge, .54 or .58 rifled
- Butt end: 2-1/8" wide by 5" high, cut for buttplate
- Butt plate: #BP-FOWL-20-B wax cast brass butt plate or #BP-FOWL-20-I wax cast steel butt plate
- Lock, flint: #LOCK-LR-2000 L&R Queen Anne right hand flint lock
- Lock, percussion: none available
- Ramrod hole & groove: 3/8" diameter, drilled full depth
- Trigger plate: #TR-YORK-TP trigger and plate
- Triggerguard: #TG-FOWL-LA-B brass triggerguard or #TG-FOWL-LA-I iron triggerguard
We are frequently asked:
Can I hand fit a 44” Colerain barrel to this stock? No. Our 42” barrel has a different taper.
Can I hand fit Jim Chambers’ fowling gun lock? No. His big lock hangs over our lock panels. This stock is perfectly scaled for our 20 gauge 42” barrel, with 1” octagon breech. The nice L&R Queen Anne flint lock is the ideal size and shape.
